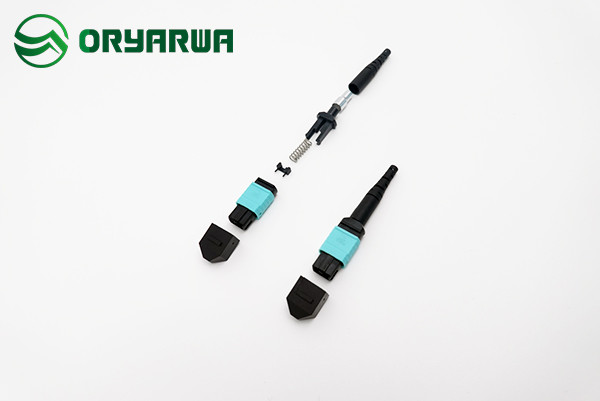

RoHS 3.0mm Female MPO Fiber Connector UPC APC Polished For FTTX
OM3 Fiber Optic Patch Cord MPO Trunk Cable Female Connector 3.0MM
UPC/APC Polished for FTTX
Detailed Product Description:
Product Name | MPO Fiber Optic Connector 3.0MM Boot | Color | Aqua |
|---|
Mode Type | Singlemode, Multimode | Insertion Loss | <0.75dB |
|---|
Tension Strength | <70N | Durability | ≤0.2dB( 500 Times) |
|---|
Operating Temp. | -40℃～+80℃ | Standards | IEC61754-7 / YD/T 1272.5 |
|---|
Environmental and Mechanism:
| Properties | Test condition | Conformance | Test result |
|---|
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
|---|
| Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
|---|
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
|---|
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
|---|
| Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
|---|
| Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
|---|
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
|---|
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
|---|
Features:
> Class A polishing end surfaces
> Good transit conductor
> Square humanized design
> Compact design, easy to plug and install, remove
> Environmental Material
Application:
> LAN cabling between different buildings Enterprises
> Optical link interconnection in optical active equipment
> The base station within a communication cabling, wiring inside
the wiring
> Residential areas, industrial parks engine room, engine room
within a commercial building optical signal connection
> Built-up wiring systems
> Optical fiber communication systems, cable television
networks, telecommunication networks
> Local area networks (LANs), wide area networks (WANs), FTTx
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are
glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new
mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for
regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to
wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D
team are responsible design
new product, open new molud and offer technology support. You are
welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
Drawing
OYH-JS-ZP-240 MPO
connector-A3.pdf
